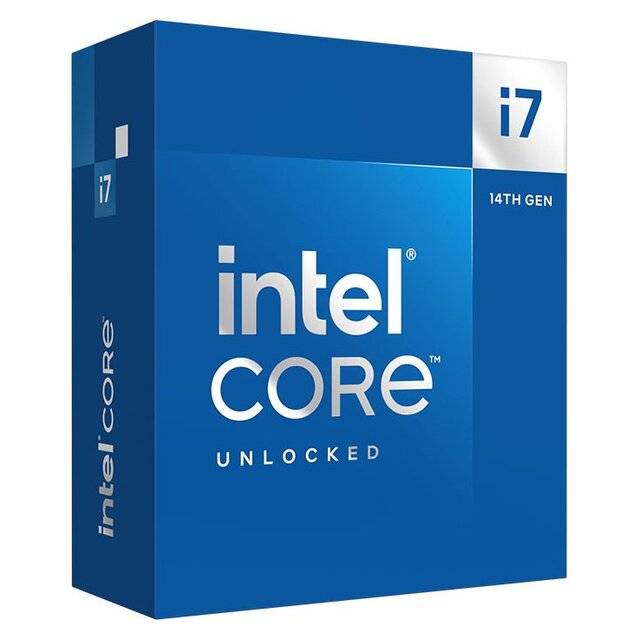

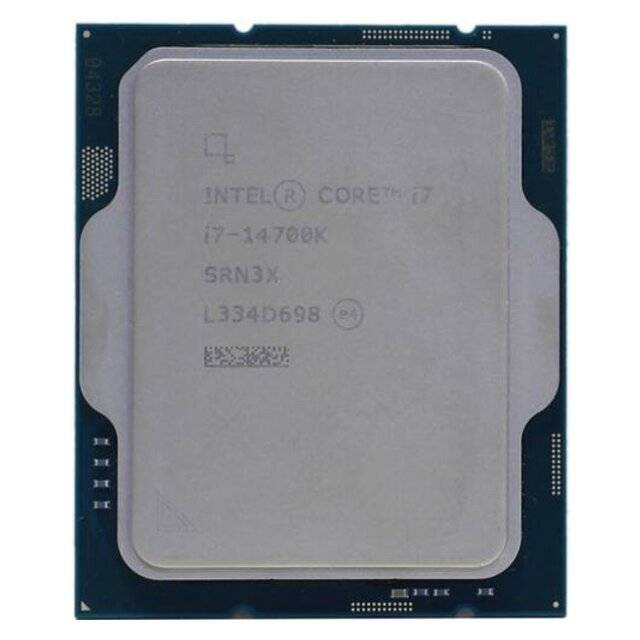

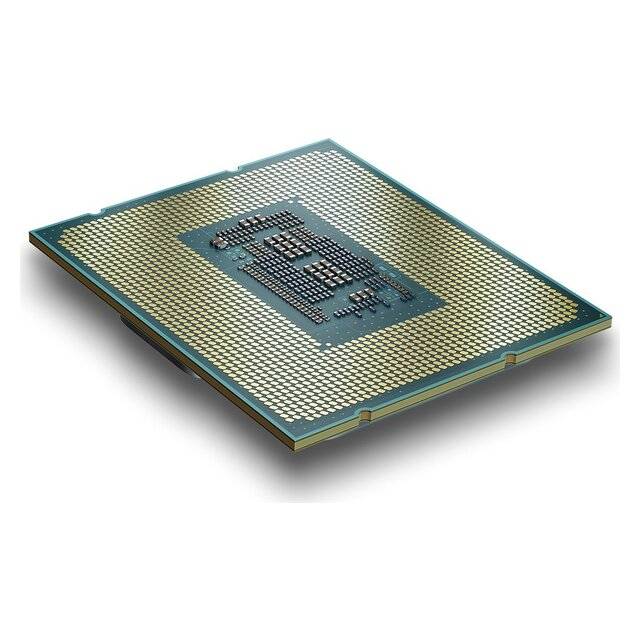

Intel Core i7-14700K Processor (Box)

Essentials

• Product Collection : Intel® Core™ i7 Processors (14th gen)

• Code Name : Products formerly Raptor Lake

• Vertical Segment : Desktop

• Processor Number : i7-14700K

• Lithography : Intel 7

• Recommended Customer Price : $409.00-$419.00

• Use Conditions : PC/Client/Tablet | Workstation

CPU Specifications

• Total Cores : 20

• # of Performance-cores : 8

• # of Efficient-cores : 12

• Total Threads : 28

• Max Turbo Frequency : 5.6 GHz

• Intel® Turbo Boost Max Technology 3.0 Frequency ‡ : 5.6 GHz

• Performance-core Max Turbo Frequency : 5.5 GHz

• Efficient-core Max Turbo Frequency : 4.3 GHz

• Performance-core Base Frequency : 3.4 GHz

• Efficient-core Base Frequency : 2.5 GHz

• Cache : 33 MB Intel® Smart Cache

• Total L2 Cache : 28 MB

• Processor Base Power : 125 W

• Maximum Turbo Power : 253 W

Supplemental Information

• Marketing Status : Launched

• Launch Date : Q4'23

• Embedded Options Available : No

Memory Specifications

• Max Memory Size (dependent on memory type) : 192 GB

• Memory Types : Up to DDR5 5600 MT/s Up to DDR4 3200 MT/s

• Max # of Memory Channels : 2

• Max Memory Bandwidth : 89.6 GB/s

• ECC Memory Supported ‡ : Yes

GPU Specifications

• GPU Name‡ : Intel® UHD Graphics 770

• Graphics Base Frequency : 300 MHz

• Graphics Max Dynamic Frequency : 1.6 GHz

• Graphics Output : eDP 1.4b | DP 1.4a | HDMI 2.1

• Execution Units : 32

• Max Resolution (HDMI)‡ : 4096 x 2160 @ 60Hz

• Max Resolution (DP)‡ : 7680 x 4320 @ 60Hz

• Max Resolution (eDP - Integrated Flat Panel)‡ : 5120 x 3200 @ 120Hz

• DirectX* Support : 12

• OpenGL* Support : 4.5

• OpenCL* Support : 3.0

• Multi-Format Codec Engines : 2

• Intel® Quick Sync Video : Yes

• Intel® Clear Video HD Technology : Yes

• # of Displays Supported ‡ : 4

• Device ID : 0xA780

Expansion Options

• Direct Media Interface (DMI) Revision : 4.0

• Max # of DMI Lanes : 8

• Scalability : 1S Only

• PCI Express Revision : 5.0 and 4.0

• PCI Express Configurations ‡ : Up to 1x16+4 | 2x8+4

• Max # of PCI Express Lanes : 20

Package Specifications

• Sockets Supported : FCLGA1700

• Max CPU Configuration : 1

• Thermal Solution Specification : PCG 2020A

• TJUNCTION : 100°C

• Package Size : 45.0 mm x 37.5 mm

Advanced Technologies

• Intel® Gaussian & Neural Accelerator : 3.0

• Intel® Thread Director : Yes

• Intel® Deep Learning Boost (Intel® DL Boost) on CPU : Yes

• Intel® Speed Shift Technology : Yes

• Intel® Turbo Boost Max Technology 3.0 ‡ : Yes

• Intel® Turbo Boost Technology ‡ : 2.0

• Intel® Hyper-Threading Technology ‡ : Yes

• Intel® 64 ‡ : Yes

• Instruction Set : 64-bit

• Instruction Set Extensions : Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2

• Idle States : Yes

• Enhanced Intel SpeedStep® Technology : Yes

• Thermal Monitoring Technologies : Yes

• Intel® Volume Management Device (VMD) : Yes

Security & Reliability

• Intel® Standard Manageability (ISM) ‡ : Yes

• Intel® Control-Flow Enforcement Technology : Yes

• Intel® AES New Instructions : Yes

• Secure Key : Yes

• Intel® OS Guard : Yes

• Execute Disable Bit ‡ : Yes

• Intel® Boot Guard : Yes

• Mode-based Execute Control (MBEC) : Yes

• Intel® Virtualization Technology (VT-x) ‡ : Yes

• Intel® Virtualization Technology for Directed I/O (VT-d) ‡ : Yes

• Intel® VT-x with Extended Page Tables (EPT) ‡ : Yes
