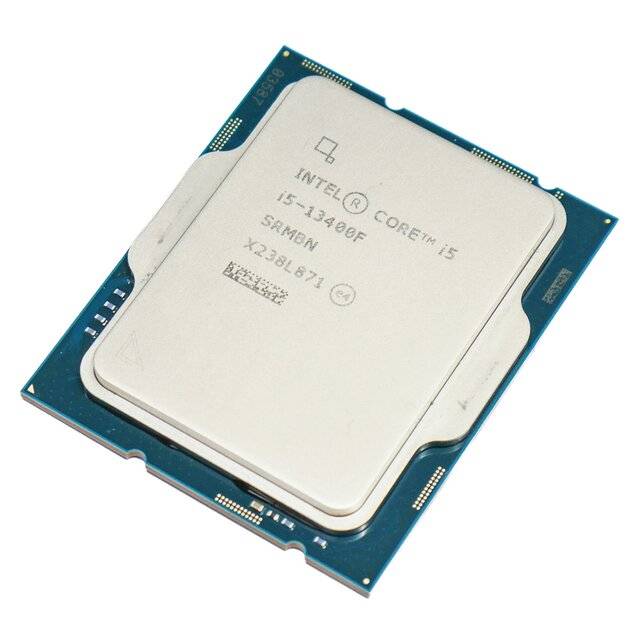

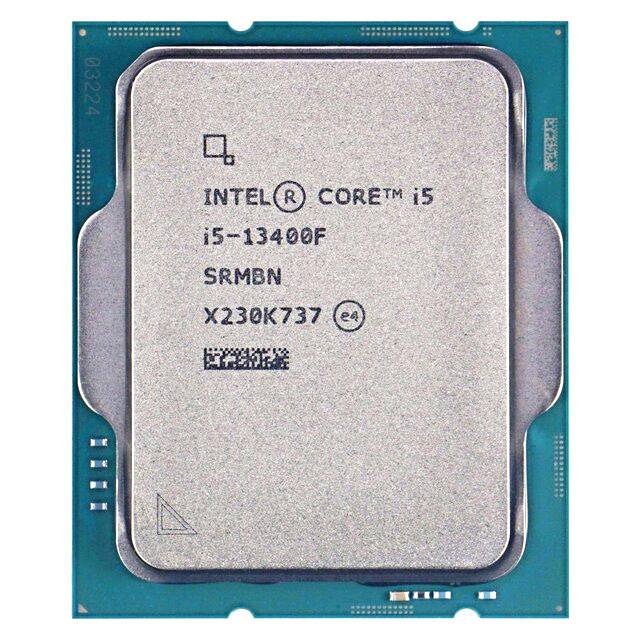

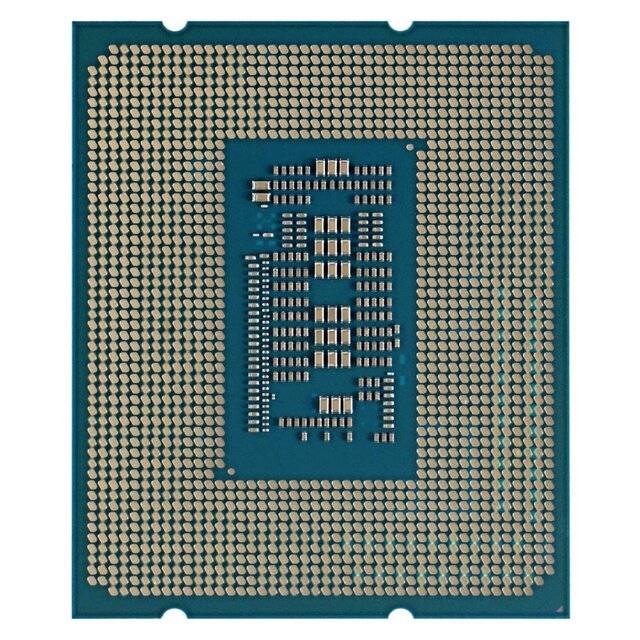

Intel Core i5-13400F Processor (Tray)

• Product Collection : 13th Generation Intel® Core™ i5

• Code Name : Products formerly Raptor Lake

• Vertical Segment : Desktop

• Processor Number : i5-13400F

• Lithography : Intel 7

CPU Specifications

• Total Cores : 10

• # of Performance-cores : 6

• # of Efficient-cores : 4

• Total Threads : 16

• Max Turbo Frequency : 4.60 GHz

• Performance-core Max Turbo Frequency : 4.60 GHz

• Efficient-core Max Turbo Frequency : 3.30 GHz

• Performance-core Base Frequency : 2.50 GHz

• Efficient-core Base Frequency : 1.80 GHz

• Cache : 20 MB Intel® Smart Cache

• Total L2 Cache : 9.5 MB

• Processor Base Power : 65 W

• Maximum Turbo Power : 148 W

Memory Specifications

• Max Memory Size (dependent on memory type) : 128 GB

• Memory Types : Up to DDR5 4800 MT/s
  Up to DDR4 3200 MT/s

• Max # of Memory Channels : 2

• Max Memory Bandwidth : 76.8 GB/s

Expansion Options

• Direct Media Interface (DMI) Revision : 4.0

• Max # of DMI Lanes : 8

• Scalability1S Only

• PCI Express Revision5.0 and 4.0

• PCI Express Configurations : Up to 1x16+4, 2x8+4

• Max # of PCI Express Lanes : 20

Package Specifications

• Sockets Supported : FCLGA1700

• Max CPU Configuration : 1

• Thermal Solution SpecificationPCG 2020C

• TJUNCTION : 100°C

• Package Size : 45.0 mm x 37.5 mm

Advanced Technologies

• Intel® Gaussian & Neural Accelerator : 3.0

• Intel® Thread Director : Yes

• Intel® Deep Learning Boost (Intel® DL Boost) : Yes

• Intel® Speed Shift Technology : Yes

• Intel® Turbo Boost Max Technology 3.0 : No

• Intel® Turbo Boost Technology : 2.0

• Intel® Hyper-Threading Technology : Yes

• Intel® 64 : Yes

• Instruction Set : 64-bit

• Instruction Set ExtensionsIntel® SSE4.1, Intel® SSE4.2, Intel® AVX2

• Idle States : Yes

• Enhanced Intel SpeedStep® Technology : Yes

• Thermal Monitoring Technologies : Yes

• Intel® Volume Management Device (VMD) : Yes

Security & Reliability

• Intel® Standard Manageability (ISM) : Yes

• Intel® Control-Flow Enforcement Technology : Yes

• Intel® AES New Instructions : Yes

• Secure Key : Yes

• Intel® OS Guard : Yes

• Execute Disable Bit : Yes

• Intel® Boot GuardYes

• Mode-based Execute Control (MBEC) : Yes

• Intel® Virtualization Technology (VT-x) : Yes

• Intel® Virtualization Technology for Directed I/O (VT-d) : Yes

• Intel® VT-x with Extended Page Tables (EPT) : Yes
