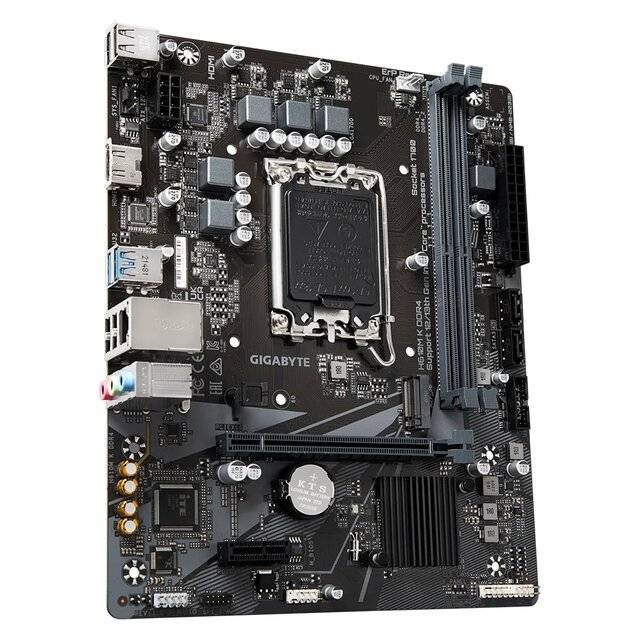

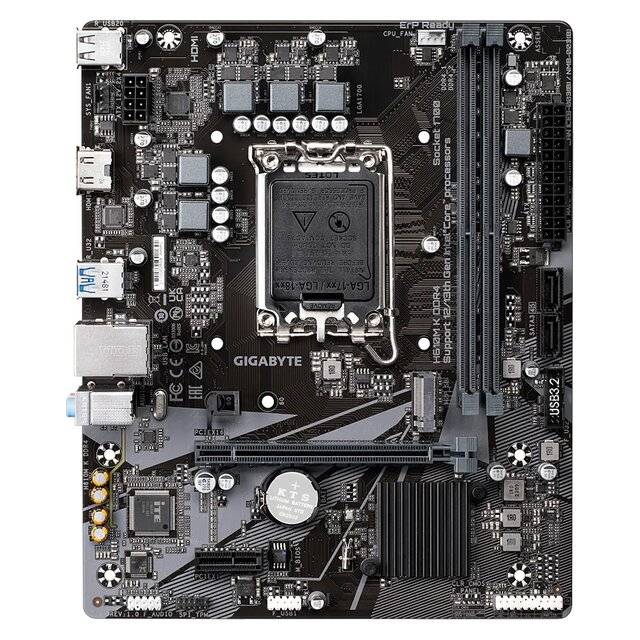

Gigabyte H610M-K DDR4 LGA1700 Motherboard

CPU

• LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*

• L3 cache varies with CPU

• * Please refer to "CPU Support List" for more information.

Chipset

• Intel® H610 Express Chipset

Memory

• Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules

• 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

• Dual channel memory architecture

• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

• Support for Extreme Memory Profile (XMP) memory modules

• (Please refer "Memory Support List" for more information.)

Onboard Graphics

• Integrated Graphics Processor-Intel

®

•  HD Graphics support:

  1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
     * Support for HDMI 2.0 version and HDCP 2.3.

  (Graphics specifications may vary depending on CPU support.)

Audio

• Realtek® Audio CODEC

• High Definition Audio

• 2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

• Realtek® GbE LAN chip (1 Gbps/100 Mbps)

Expansion Slots

• CPU:

  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

  Chipset:

  1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface

• Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)

  2. 2 x SATA 6Gb/s connectors

USB

• Chipset:

  1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

  2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors

• 1 x 24-pin ATX main power connector

• 1 x 8-pin ATX 12V power connector

• 1 x CPU fan header

• 1 x system fan header

• 1 x M.2 Socket 3 connector

• 2 x SATA 6Gb/s connectors

• 1 x front panel header

• 1 x front panel audio header

• 1 x USB 3.2 Gen 1 header

• 1 x USB 2.0/1.1 header

• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

• 1 x Clear CMOS jumper

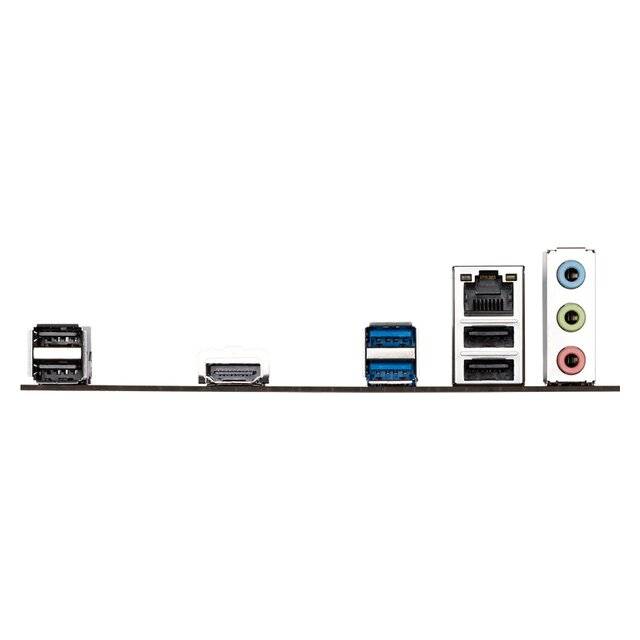

Back Panel Connectors

• 1 x HDMI port

• 2 x USB 3.2 Gen 1 ports

• 4 x USB 2.0/1.1 ports

• 1 x RJ-45 port

• 3 x audio jacks

I/O Controller

• iTE® I/O Controller Chip

H/W Monitoring

• Voltage detection

• Temperature detection

• Fan speed detection

• Water cooling flow rate detection

• Fan fail warning

• Fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

• 1 x 128 Mbit flash

• Use of licensed AMI UEFI BIOS

• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

• Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  Smart Backup
  System Information Viewer

• Support for Q-Flash

• Support for Xpress Install

Bundled Software

• Norton® Internet Security (OEM version)

• LAN bandwidth management software

Operating System

• Support for Windows 11 64-bit

• Support for Windows 10 64-bit

Form Factor

• Micro ATX Form Factor; 22.6cm x 18.5cm
